Heavy Zinc Galvanization
High-purity hot-dip zinc coating (100 to 260 g/m²) conforming to IS 4826 for prolonged outdoor endurance.
Consistent Tensile Strength
Precision cold-drawn wire rods ensuring zero knot-snapping and consistent flexibility during tying and fencing.
Export Quality Bundle Packaging
Waterproof plastic-wrapped and hessian-bound coils preventing transit moisture and abrasion.

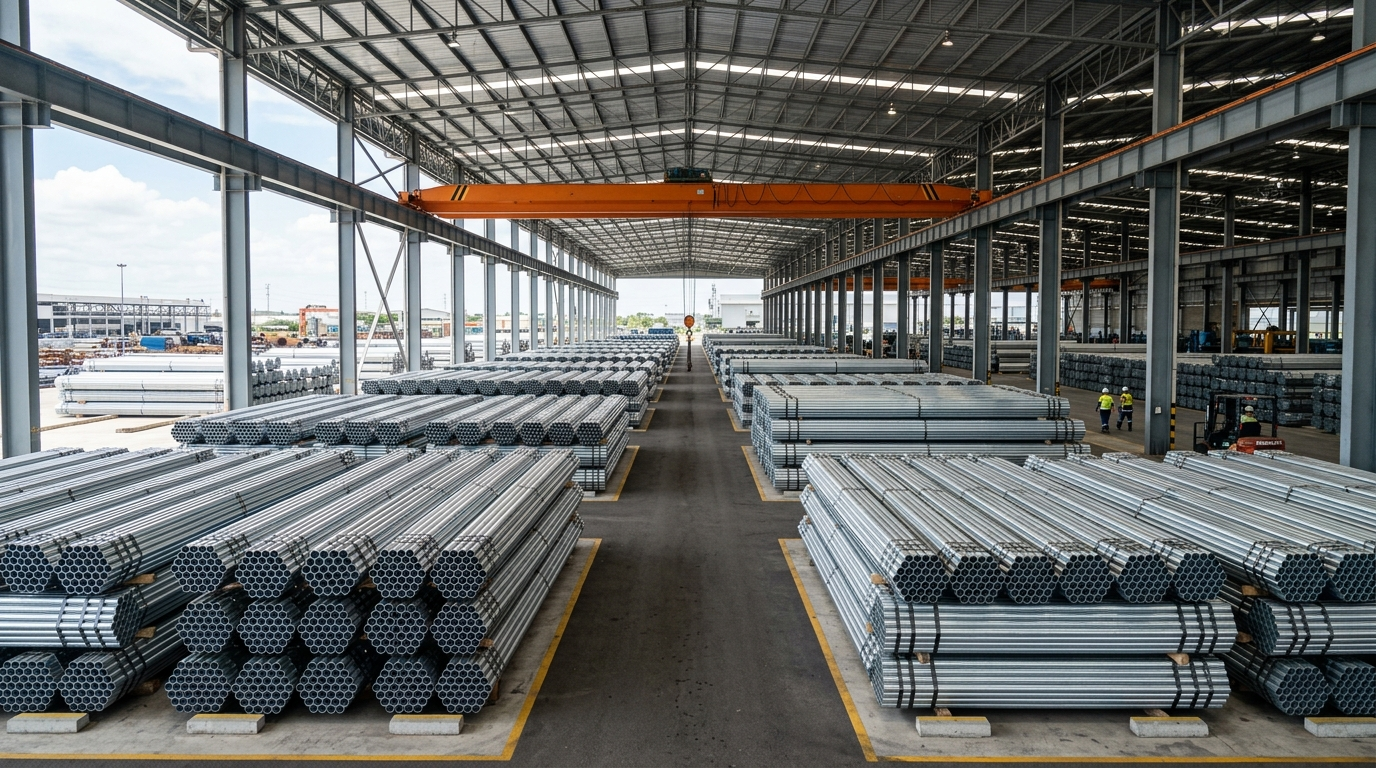

Ready Inventory in Raipur Yard
High-tonnage stocks ready for rapid multi-axle freight loading across India.
Industrial Wire Specifications, Gauge Size & Weight Chart
Standard SWG gauges, wire diameters in mm, tensile strength, and coil packaging specifications.
Industrial Wire Specifications, Gauge Size & Weight Chart
Ready Stock Inventory| Wire Product Type | Standard Wire Gauge (SWG) | Diameter (mm) | Tensile Strength (N/mm²) | Coil Weight / Packing | Instant Quote |
|---|---|---|---|---|---|
| GI Barbed Wire (IS 278) | 12 x 12 SWG | 2.50 mm (Line & Barb) | 400 - 550 N/mm² | 25 - 30 kg Bundle | |
| GI Barbed Wire (IS 278) | 12 x 14 SWG | 2.50 x 2.00 mm | 400 - 550 N/mm² | 25 - 30 kg Bundle | |
| GI Barbed Wire (IS 278) | 14 x 14 SWG | 2.00 mm (Line & Barb) | 400 - 550 N/mm² | 25 - 30 kg Bundle | |
| Concertina Razor Wire (BTO-22) | Core 2.5mm / 0.5mm Blade | 450 mm Coil Dia | 1400 - 1600 N/mm² | 6 - 8 Mtr Stretch Roll | |
| Concertina Razor Wire (CBT-65) | Core 2.5mm / 0.5mm Blade | 600 mm Coil Dia | 1400 - 1600 N/mm² | 8 - 10 Mtr Stretch Roll | |
| GI Binding Wire (Annealed) | 18 SWG | 1.20 mm | 350 - 500 N/mm² | 25 kg / 50 kg Coil | |
| GI Binding Wire (Annealed) | 20 SWG | 0.90 mm | 350 - 500 N/mm² | 25 kg / 50 kg Coil | |
| HB Wire (Hard Bright) | 8 SWG to 16 SWG | 4.00 - 1.60 mm | 550 - 750 N/mm² | 50 kg / 100 kg Coil | |
| GI Stay Wire (7/10 SWG) | 7 Strands x 3.15 mm | Overall ~9.5 mm | Class A / B (700 MPa) | 100 kg Coil / Wooden Reel | |
| GI Stay Wire (7/8 SWG) | 7 Strands x 4.00 mm | Overall ~12.0 mm | Class A / B (700 MPa) | 100 kg Coil / Wooden Reel | |
| GI Commercial Wire | 8 SWG to 14 SWG | 4.00 - 2.00 mm | 350 - 550 N/mm² | 50 kg / 100 kg Coil | |
| Welded Wire Mesh (IS 1566) | 100 x 100 mm / 3.0mm | 3.0 mm to 6.0 mm | 480 - 600 N/mm² | Rolls / Sheets |
Industrial & Agricultural Wire Products Engineering Guide
Industrial wire products form the vital foundation for structural concrete binding, electrical grid grounding, perimeter defense, agricultural fencing, and fastener manufacturing. Produced from prime low carbon (SAE 1006 / 1008) and medium carbon wire rods via multi-pass dry drawing, annealing, and hot-dip galvanizing, these wires offer controlled tensile toughness and uniform elongation.
Our product spectrum includes GI Barbed Wire (IS 278) with sharp 4-point barbs; Concertina Razor Wire coils with puncture-resistant blades for military and perimeter security; soft annealed GI Binding Wire (18 & 20 SWG) for effortless TMT tying; 7-strand GI Stay Wires (IS 2141) for power distribution poles; and Hard Bright (HB) wires for wire nails, screws, and welded mesh.
Heavy Zinc Galvanization
High-purity hot-dip zinc coating (100 to 260 g/m²) conforming to IS 4826 for prolonged outdoor endurance.
Consistent Tensile Strength
Precision cold-drawn wire rods ensuring zero knot-snapping and consistent flexibility during tying and fencing.
Export Quality Bundle Packaging
Waterproof plastic-wrapped and hessian-bound coils preventing transit moisture and abrasion.
Ready Inventory in Raipur Yard
High-tonnage stocks ready for rapid multi-axle freight loading across India.
Certified Quality Standards & Weight Assurance
At barbedwiresuppliers.com, all products are supplied directly from authorized primary steel mills and certified secondary rolling plants with 100% adherence to standard BIS, ASTM, and DIN tolerances. Every dispatch is accompanied by authentic Mill Test Certificates (MTC) certifying chemical ladle composition, mechanical yield and tensile strength, and weight measurements.
Guaranteed Dispatch Quality • Digital Weighbridge Slips • Transit Insurance • Direct Mill Wholesale Rates
For project tenders, contractor billing of quantities (BOQ), and institutional procurement across India, contact our Raipur steel sales desk directly for spot wholesale rates.
Frequently Asked Questions
Key technical and commercial answers regarding Industrial Wire Products (GI, Barbed, Binding & Stay Wire) specifications and supply.
In 12x12 SWG barbed wire, both the line wire and point barbs are 2.50 mm (12 gauge), providing maximum physical strength. In 12x14 SWG, the line wire is 2.50 mm while the barbs are 2.00 mm (14 gauge), offering an economical alternative with high meterage per kg.
Annealing relieves internal stresses in drawn wire, making it exceptionally soft, pliable, and crack-free when bent sharply around rebar intersections, increasing mason tying speed without snap failures.
GI Stay Wire complies with IS 2141 / IS 12776, commonly supplied as 7/10 SWG (7 strands of 3.15mm) or 7/8 SWG (7 strands of 4.0mm) with minimum tensile strength of 700 MPa and heavy zinc coating.
Concertina Razor Wire features high-tensile spring wire core clad with sharp stamped razor blades (BTO-22 / CBT-65), creating an impassable barrier for military borders, industrial yards, and high-security installations.
We supply retail bundle quantities as well as full truckload (15 to 30 tons) wholesale consignments across India.
Ready to Place Your Order for Industrial Wire Products (GI, Barbed, Binding & Stay Wire)?
Connect directly with our Raipur sales desk for immediate price quotations, bulk project discounts, and swift logistics across India.
